Product Summary
The CXB1457R is a chipset using GVIF (Gigabit Video Interface) technology. The GVIF chipset enables high speed transmission of uncompressed digital video over a single twisted pair cable in motor vehicle applications. The CXB1457R is the transmitter. The applications of the CXB1457R include Navigation Systems, In-Dash Display, Automotive View Cameras, Rear Seat Entertainment.
Parametrics
MN3674 absolute maximum ratings: (1)Single +3.3V power supply; (2)Operating shift clock frequency 7.6 to 42MHz; (3)Operating temperature range: -40 to +85℃; (4)Storage temperature range: -65 to +150℃.
Features
CXB1457R features: (1)Serial transmission of 24-bit color video; (2)Data bandwidth up to 1.2Gbps; (3)Low power consumption; (4)On-chip differential cable driver; (5)Cable length up to 20m; (6)On-chip PLL synthesizer; (7)CMOS logic interface; (8)On-chip FIFO circuit.

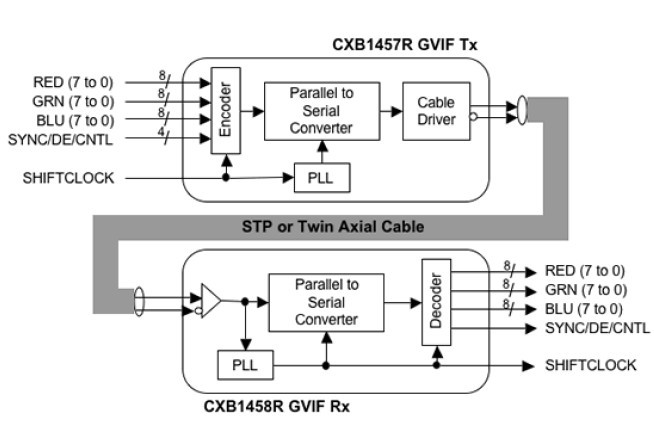

Diagrams
